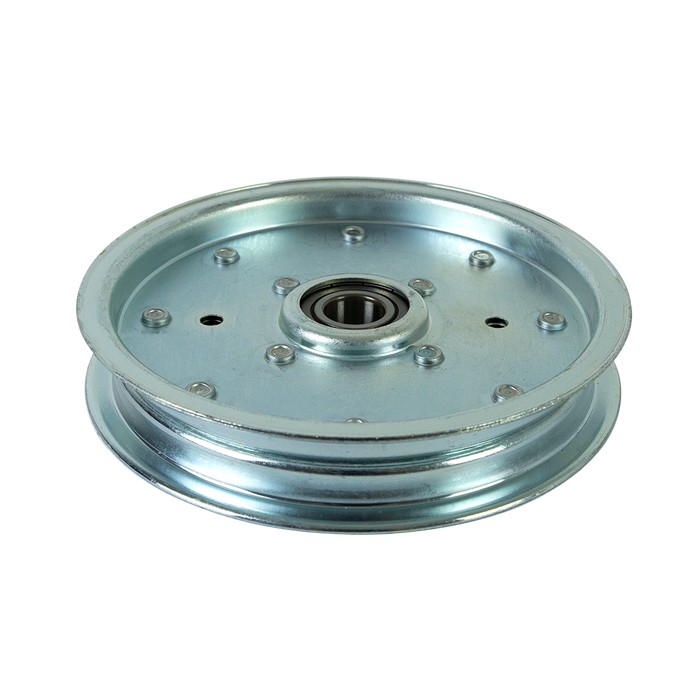

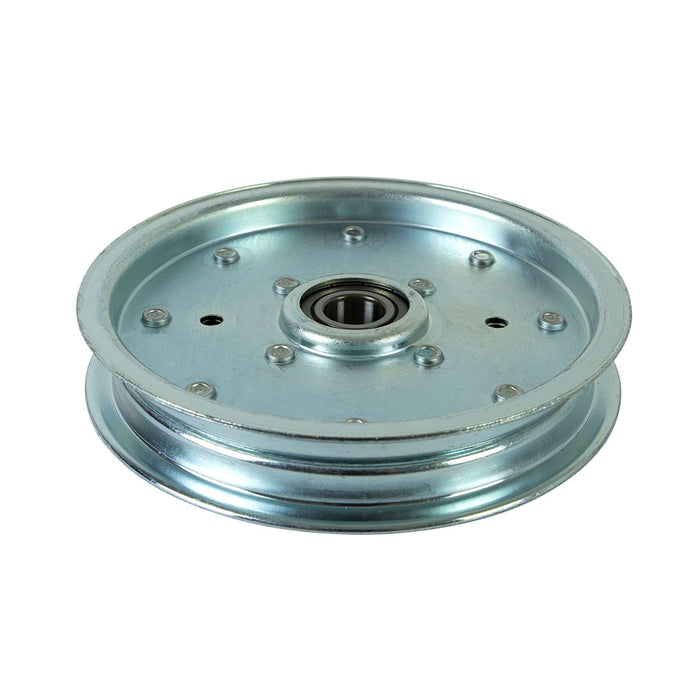

NON-GENUINE JOHN DEERE ZTRAK DECK PULLEY FLAT STEEL IDLER

Description: Non-Genuine John Deere ZTrak Deck Flat Idler Pulley - Steel
Replaces OEM: John Deere AUC10172, GY22355
Centre Hole Type: Round
Centre Hole Diameter: (inches) 0.669"
Centre Hole Diameter: (mm) 17 mm
Deck (cm) 106.7 cm, 122 cm, 137.2 cm, 152.4 cm Cut.
Deck (inches) 42", 48", 54", 60" Cut.
Deck (mm) 1067 mm, 1220 mm, 1372 mm, 1524 mm Cut.
Outside Diameter: (inches) 6 1/8"
Outside Diameter: (mm) 155.57 mm
Pulley Dimension A: (inches) 6 1/8"
Pulley Dimension A: (mm) 155.57 mm
Pulley Dimension B: (inches) 5 1/2"
Pulley Dimension B: (mm) 139.7 mm
Pulley Dimension C: (inches) 0.669"
Pulley Dimension C: (mm) 17 mm
Pulley Dimension D: (inches) 15/16"
Pulley Dimension D: (mm) 23.81 mm
Pulley Height : (inches) 15/16"
Pulley Height : (mm) 23.81 mm
Fits: 42" (1067 mm) cut John Deere Accel Deep Deck model 42A cutting decks as fitted to
selected Residential ZTrak series including models Z335E [2] (years 2016 to 2021),
Z335M [2] (years 2017 to 2021), Z345M [2] (year 2021), Z345R [2] (years 2017 to
2021), 48" (1220 mm) cut John Deere Accel Deep Deck model 48A cutting decks as
fitted to selected Residential ZTrak series including models Z355E [3] (years 2017
to 2021), Z355R [3] (years 2019 to 2021), Z365R [3] (year 2021), Z515E [3] (year
2021), Z525E [3] (years 2016 to 2020), Z530M [3] (year 2021), Z535M [3] (years 2016
to 2020) and 48" (1220 mm) cut John Deere Edge HC (High-Capacity) decks as fitted
to selected Residential ZTrak series including model Z540R [3] (2016 to 2020), 54"
(1372 mm) cut John Deere Accel Deep Deck model 54A cutting decks as fitted to
selected Residential ZTrak series including models Z375R [3] (years 2017 to 2021),
Z515E [3] (year 2021), Z525E [3] (years 2016 to 2020), Z530M [3] (year 2021), Z535M
[3] (years 2016 to 2020) and 54" (1372 mm) cut John Deere Edge (HC High Capacity)
decks as fitted to selected Residential ZTrak series including models Z535R [3]
(years 2016 to 2020), Z540R [3] (years 2016 to 2020),60" (1524 mm) cut John Deere
Accel Deep Deck model 60A cutting decks as fitted to selected Residential ZTrak
series including models Z515E [3] (year 2021), Z530M [3] (year 2021) and 62" (1575
mm) cut John Deere Edge (62C) cutting decks as fitted to selected Residential ZTrak
series including model Z535M [3] (years 2017 to 2020) zero turn radius (ZTR)
ride-on models.
Product Line Notes: The number in brackets after the model is listed, is the quantity of this flat
idler pulley required per unit.
Standard Pack Quantity: 1
Brand: John Deere Non-Genuine,
Product Line: Deck Flat Idler Pulley, Flat Idler Pulley, Idler Pulley - Flat, Steel Flat Idler
Pulley,
