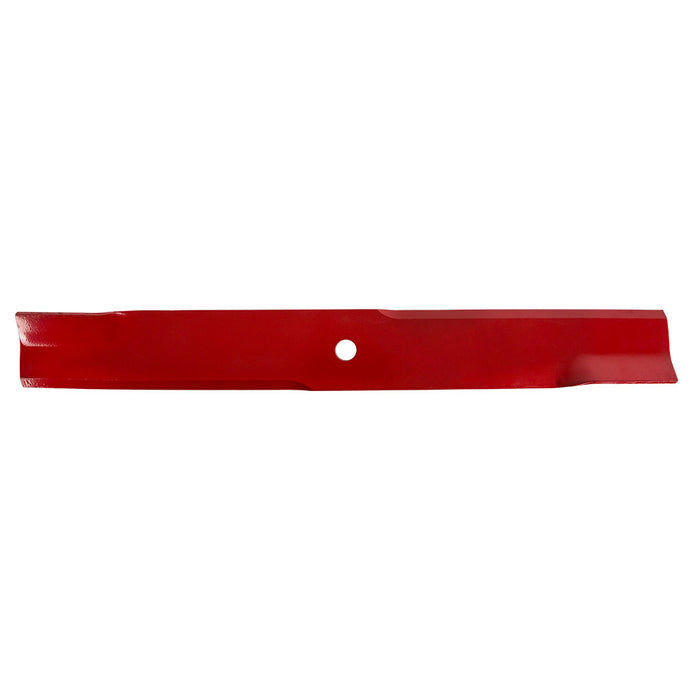

HUSTLER BAR BLADE 20-1/2" X 5/8" REAR DISCHARGE 60" & 104" DECK

Description: Non-Genuine HUSTLER 60" & 104" Cut Low Flute, Left Hand Cut Standard Type Bar Blade
Replaces OEM: HUSTLER: 795633
Centre Hole Diameter: (inches) 5/8"
Centre Hole Diameter: (mm) 15.875 mm
Deck (inches) 60" & 104" Cut.
Deck (mm) 1524 mm & 2642 mm Cut.
Deck (cm) 152.4 cm & 264.2 cm Cut.
Length: (in) 20 1/2"
Length: (mm) 520.7 mm
Thickness: (inches) .204"
Thickness: (mm) 5.1816 mm
Width: (inches) 2 1/2"
Width: (mm) 63.5 mm
Centre Hole Type: Round
Fits: 60" (1524 mm) cut HUSTLER Super Z (models HU930024EX, HU932178EX, HU935320EX,
HU938126EX and HU941195EX), Super Z Hyperdrive (models HU941336EX and HU937078EX)
and Z Diezel (models HU931212EX and HU938191EX) rear discharge zero turn radius
(ZTR) models.
Qty required per unit: For 60" cut rear discharge decks use BLR6918 (replaces OEM: 600901) x 2 qty and
BLR8584 (replaces OEM: 795633) x 1 qty.
Fits: 104" (2642 mm) cut HUSTLER Super 104 (models HU931733EX, HU938910EX, HU939603EX and
HU940544EX (*on the centre rear discharge deck only) zero turn radius (ZTR) models.
Qty required per unit: *For the centre rear discharge decks use BLR6918 (replaces OEM: 600901) x 2 qty and
BLR8584 (replaces OEM: 795633) x 1 qty.
Features: Standard type flat bar blade with low formed flutes, left hand cut (counter
clockwise rotation).
Standard Pack Quantity: 1
Please Note: All bar bades are sold as singles, please order the quantity required to make up a
set.
Brand: HUSTLER Non-Genuine,
Product Line: Bar Blade, Blade Bar, Low lift Bar Blade, Ride-On Blade, Standard Type Bar Blade,
