SUPASWIFT MODEL SSH200F 196CC HORIZONTAL ENGINE 200F 3/4 CRANK SHAFT
SKU ENG8378
Original price
$316.78
-
Original price
$316.78
Original price
$316.78
$316.78
-
$316.78
Current price
$316.78
Availability:
Available
PRODUCT DESCRIPTION

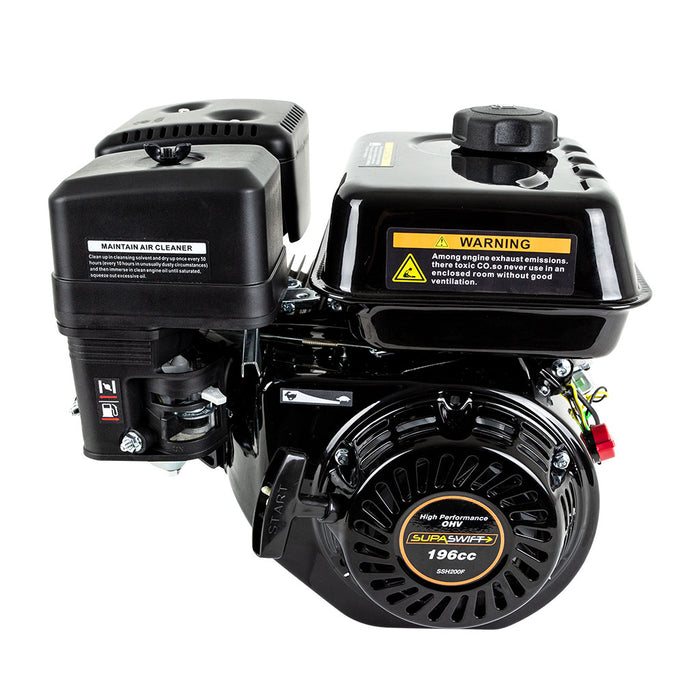

Description: SupaSwift SSH200F, 4.1 kw, 196 cc Single Cylinder OHV Horizontal Shaft Engine
Editorial: The SupaSwift SSH200F is a quality small engine at an affordable price. With
premium features such as a forged crankshaft, metal cam shaft, cast iron cylinder
liner, OHV design, low oil safety cut-out and with proven reliability this engine
is ready to be fitted to a variety of outdoor power equipment to provide years of
trouble free service.
Warranty: 3 years domestic, 3 months commercial. For further details on our warranty terms
and conditions including all limitations and exclusions please refer to the
warranty section on our web site or contact our friendly sales team.
Features: Cast-Iron cylinder liner.
Forged crankshaft.
Metal camshaft.
OHV design.
Low oil cut- out protection.
Proven reliability.
Conforms to EU5.
Engine: SupaSwift SSH200F (SS-H200-F).
Type: Air cooled, single cylinder OHV, horizontal shaft, normally aspirated 4 stroke
petrol engine.
Displacement: 196 cc.
Bore x Stroke: 68 mm x 54 mm.
Cylinder: Single cylinder with cast -iron cylinder liner.
Compression Ratio: 8.5 : 1.
Net Power: 4.1 kW @ 3600 rpm. (Measured in accordance with SAE J1349)
Net Torque: 12.4 Nm @ 2500 rpm. (Measured in accordance with SAE J1349)
Engine (cc): 196 cc
Crankshaft: Forged crankshaft
Crankshaft Diameter: (inches) 3/4"
Crankshaft Diameter: (mm) 19.05 mm
PTO Shaft Type: 3/4" or 19.05 mm, parallel keyway.
PTO Shaft Rotation: Anti Clockwise (from the PTO side).
Cooling: Air cooled.
Governor: Centrifugal mass type.
Carburettor: Butterfly type.
Choke: Manual.
Idle Speed: 1800 � 150 rpm / min.
Starter: Recoil Start.
Ignition: Transistorised Magneto Ignition.
Lubrication: Splash.
Oil Capacity: 600 ml (Please use 10W/40 oil).
Fuel: Unleaded (minimum of 90 octane).
Fuel Capacity: 3.6 Litres.
Fuel Filter: In-tank fuel filter.
Air Filter: Paper element with foam outer.
Exhaust/Muffler: Yes.
Dry Weight: (lb) 35.27 lb.
Dry Weight: (kg) 16 kg.
International Standard: Conforms to EU5.
Standard Pack Quantity: 1
Please Note: Specifications subject to change without notice. The power rating of this engine is
the net power output tested on a production engine and measured in accordance with
SAE J1349 at 3,600 rpm (Net Power) and at 2,500 rpm (Max. Net Torque).
Brand: SupaSwift,
Product Line: Engine, Four Stroke Engine, SupaSwift Engine, 4 Stroke Engine,
