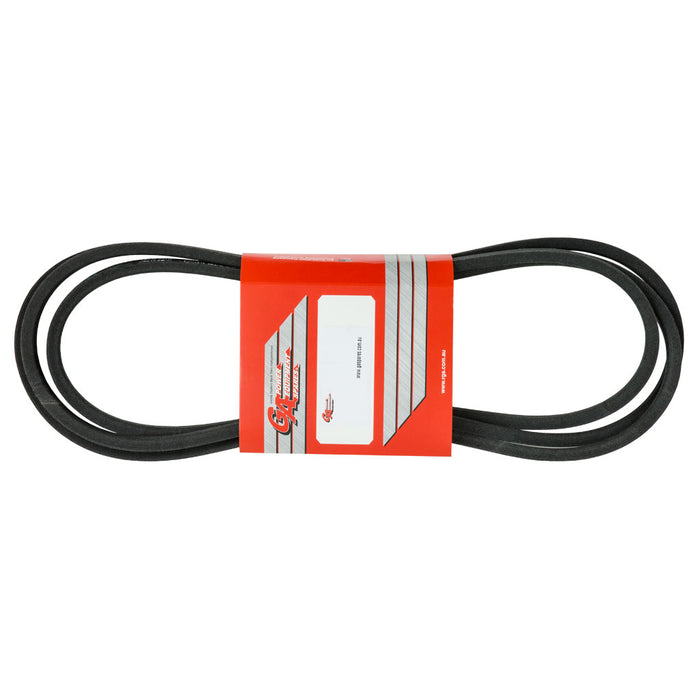

BELT 96" 4L980 6898

Description: Non-Genuine Ariens, GRAVELY, John Deere, TORO, Universal V-Belt
Replaces OEM: Ariens: 07200116
GRAVELY 07200116
John Deere: M118760, M41668
Toro: 108834
Universal 6898
Deck (inches) 34", 38", 42", 46" & 50" Cut
Deck (mm) 863 mm, 965 mm, 1067 mm, 1168 mm, 1270 mm Cut
Deck (cm) 86.3 cm, 96.5 cm, 106.7 cm, 116.8 cm & 127 cm Cut
Length Inside Circumference: ( 96"
Length Inside Circumference: ( 2438.4 mm
Length Outside Circumference: 98"
Length Outside Circumference: 2489.2 mm
Width: (inches) 1/2"
Width: (mm) 12.7 mm
Fits: 34" (863 mm) cut Ariens Zoom 1334 (915131 models with seral # 000101 - 010000 and
onwards), Ariens Zoom 34 (915157 models with serial # 000101 - 035000 and onwards,
915189 models with serial # 045000 and onwards, Ariens Zoom 34 Carb (915169 models
with serial # 000101 - 035000 and onwards, 915193 models with serial # 000101 -
044999), Ariens Zoom 34 CE (915322 models with serial # 010000 - 029999) zero turn
radius (ZTR) ride-on models as the cutter deck belt.
Belt Position & Size: Ariens Cutter Deck Belt (1/2" Wide x 96" I.C / 98" O.C)
Fits: 34" (863 mm) cut GRAVELY ZT34 (915146 models with serial # 000101 - 035000 and
onward and 915190 models with serial # 000101 - 056000 and onwards) zero turn
radius (ZTR) ride-on models as the cutter deck belt.
Belt Position & Size: GRAVELY Cutter Deck Belt (1/2" Wide x 96" I.C / 98" O.C)
Fits: 38" (965 mm) cut John Deere STX38 (late models with a black mower deck) ride-on
lawn mower models as the hydrostatic transmission drive belt.
Belt Position & Size: John Deere Hydro Drive Belt (1/2" Wide x 96" I.C / 98" O.C)
Fits: 46" (1168 mm) cut John Deere STX46 (late models with a black mower deck) ride-on
lawn mower models as the hydrostatic transmission drive belt.
Belt Position & Size: John Deere Hydro Drive Belt (1/2" Wide x 96" I.C / 98" O.C)
Fits: 50" (1270 mm) cut John Deere 300 series tractors fitted with a 50" mid-mount rotary
mower including 314, 316, 317, 318, 322, 330 and 332, also fits 140, 420 and 430
ride-on lawn mower models as the secondary cutter deck belt.
Belt Position & Size: John Deere Cutter Deck Belt (1/2" Wide x 96" I.C / 98" O.C)
Fits: Toro 42" Cut 300, 400, 500 Deck 0542MR, PTO to cutter deck belt.
Belt Position & Size: TORO PTO To Cutter Deck Belt (1/2" Wide x 96" I.C / 98" O.C)
Product Line Notes: 42" (1067 mm) cut TORO 300, 400 and 500 (unit I.C # 05-42MR01) ride-on lawn mower
models fitted with 42" cut rear discharge decks as the PTO to cutter deck belt.
Fits: A multi-purpose premium quality 6898 v-belt suitable for various applications.
Standard Pack Quantity: 1
Footnote: Our premium quality belts are manufactured with high-strength Aramid fibre cords
for heavy duty applications and severe duty cycles. These belts have a drier cover
fabric that is designed to increase flexibility and withstand severe clutching
action, bending or twisting, heavy loads and backside idler applications. Oil and
heat resistant. Aramid Fibre Cord is the family name of nylons that include Kevlar.
Brand: Ariens Non-Genuine , GRAVELY Non-Genuine , John Deere Non-Genuine , TORO
Non-Genuine,
Product Line: Belt, blade belt, cutter deck belt, cutter drive belt, deck belt, drive belt,
motion drive belt, transmission belt, v-belt,
