ELECTRIC PTO CLUTCH ASSEMBLY 1-1/8" ID X 6.25" PULLEY
SKU CLL7782
Original price
$725.90
-
Original price
$725.90
Original price
$725.90
$725.90
-
$725.90
Current price
$725.90
Availability:
Available
PRODUCT DESCRIPTION

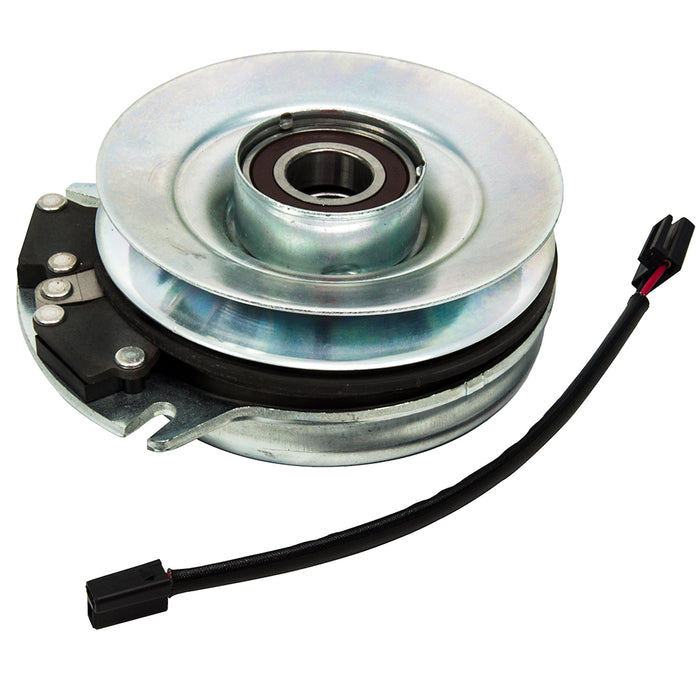

Description: Electric PTO Clutch Assembly
Replaces OEM: Bad Boy: 070-5035-00
BigDog: 601311
Exmark: 103-0665, 1-631732, 1-641300
Grasshopper: 388740
Hustler: 787366, 601311
Toro 103-0501, 103-0665
Warner 5218-65, 5218-213
Inside Diameter: (inches) 1 1/8
Inside Diameter: (mm) 28
Height: (inches) 3 5/8
Height: (mm) 92.07
Pulley Diameter : (inches) 6.25
Pulley Diameter : (mm) 158.75
Fits: Selected BigDog ZTR models including X-Series models 931543, 931584.
Fits: Selected Hustler ZTR models including Super Z model 927046, Super Z XR7 model 927996, X-One models 931675EX, 930511EX, 930545EX, Hustler Z models 727053, 926881, 927814.
Fits: Selected Toro 72" cut Z286E Z master (model 74241) fitted with 26hp Kohler engines built between 2001 & 2002.
Features: Manufactured by an OEM supplier. Uses 5/8" V-belt ("B" or 69 series belt). Operates in a clockwise direction.
Standard Pack Quantity: 1
Please Note: IMPORTANT INFORMATION ON ELECTRIC CLUTCHES
Over the counter sales of clutches as spare parts should be discouraged.
WHY? - The main causes of failures to electric clutches are due to faults with the
battery and/or charging circuits not providing the correct current to operate the
clutch adequately leading to premature failure. Electric PTO clutches are a
specialist component that should only be fitted by a servicing dealer with the
correct equipment to test both the charging circuits and battery condition. It is
therefore the responsibility of the servicing dealer to test these items prior to
installing a new clutch. Failure to do so will void warranty. Warranty covers
normal use and does not cover damage or defect which results from alteration,
accident, neglect, or improper clutch selection, installation, operation, or
maintenance. Warranty covers faulty manufacture and/or workmanship.
GA Spares stocks electric clutches manufactured by an OEM supplier.
Brand: Bad Boy - Non Genuine, BigDog - Non Genuine, Exmark - Non Genuine, Grasshopper - Non Genuine, Hustler - Non Genuine, Toro - Non Genuine, Warner,
Product Line: Electric Clutch, Clutch - Electric,
